Zen3 "Vermeer" · AMD
Zen 3 is really a much-faster, desktop-optmized, refined architecture delivered from Zen 2.
Zen 3 is only slightly faster in multi-core (10%), but significantly faster in single-core (20%).
Zen 3 can utilize almost all the execution engines from a single-core apps, while Zen 2 under-utilized those,
so to extract max performance from zen 2, it was necessary to write multi-threaded code.
You can view Zen 3 as a Gamer's CPU, where AMD Ryzen 5000 series finally closed the gap against Intel's Core i9 9900K CPU
when it comes to gaming, and it performs much faster in workstation-class apps, due to 2x more cores.
5 result(s) recorded for this family.

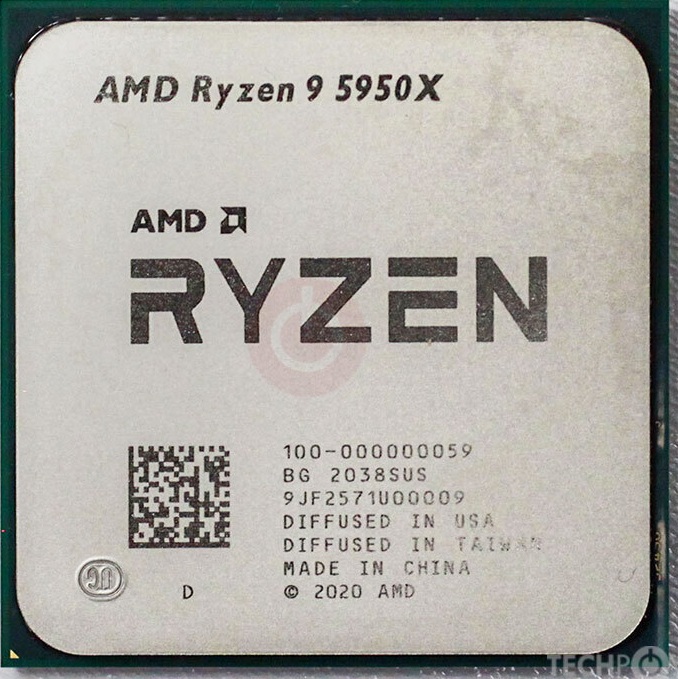

Flagship: AMD Ryzen 9 5950X 16-Core Processor
ST score/GHz: 975 · MT score/Watt: 548
| Specification | Value |
|---|---|
| Introduced | 2020 |
| Arch Generation | 14 |
| Architecture / Codename | Zen3 "Vermeer" |
| Cores / Threads | 16/32 |
| Technology Node | 7 nm |
| Die Size | 2x 74 mm²(CPU) + 124 mm²(IO) |
| Transistors | 8.3 billion |
| Frequency | 3400-4900 MHz |
| Instructions | x86-64. MMX, SSE4.2, AMD-V, AVX2 |
| TDP | 105 watts (142 watt actual) |
| Cache L1 | 64 KB = 32 KB + 32 KB (i+d) |
| Cache L2 | 512 KB per core |
| Cache L3 | 4 MB per core (16 MB per 4-core CCX) |
| Socket | AM4 |
| Memory Type | DDR4 SDRAM-1866/2133 |
| Memory Bandwidth | 34.1 GB/s |
| Memory Size Typical | 16-32 GB |
| Memory Size Max | 128 GB |
