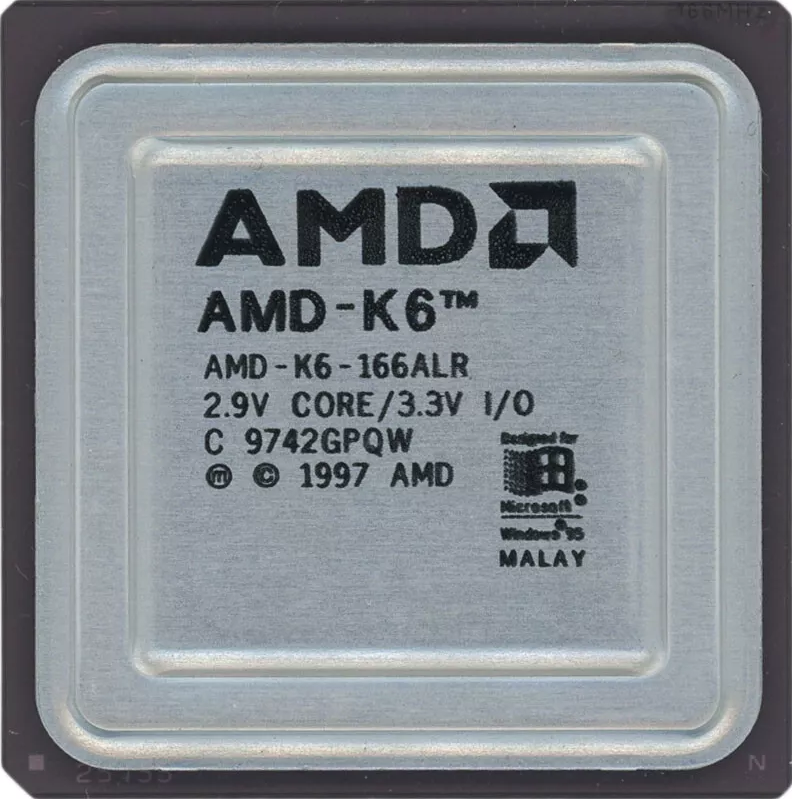

K6 · AMD
Processor for Pentium socket. MMX Technology. AMD's answer to the Intel Pentium Processor.
AMD's first super-scalar and out-of-order design, acquired from NetGen (their Nx686 design).
Super-scalar meaning it can execute more than 1 commands per clock cycle.
Out-of-order meaning it can re-order instructions on the fly, provided it does not change the algorithm's logic.
1 result(s) recorded for this family.
Flagship: AMD K6-2 500 MHz
ST score/GHz: 110 · MT score/Watt: 2.61
| Specification | Value |
|---|---|
| Introduced | 1997 |
| Arch Generation | 6 |
| Architecture / Codename | K6 |
| Cores / Threads | 1 |
| Technology Node | 300 nm, 250 nm |
| Die Size | ? |
| Transistors | 8.8 million |
| Frequency | 166-300 MHz |
| Instructions | x86. MMX. (+3Dnow! for K6-2) |
| TDP | ~20 watt? |
| Cache L1 | 64 KB = 32 KB + 32 KB (i+d) |
| Cache L2 | from 256 KB to 1 MB on the main-board. |
| Memory Type | EDO DRAM-33 MHz |
